Product Description
万兆电口模块
品牌系列:

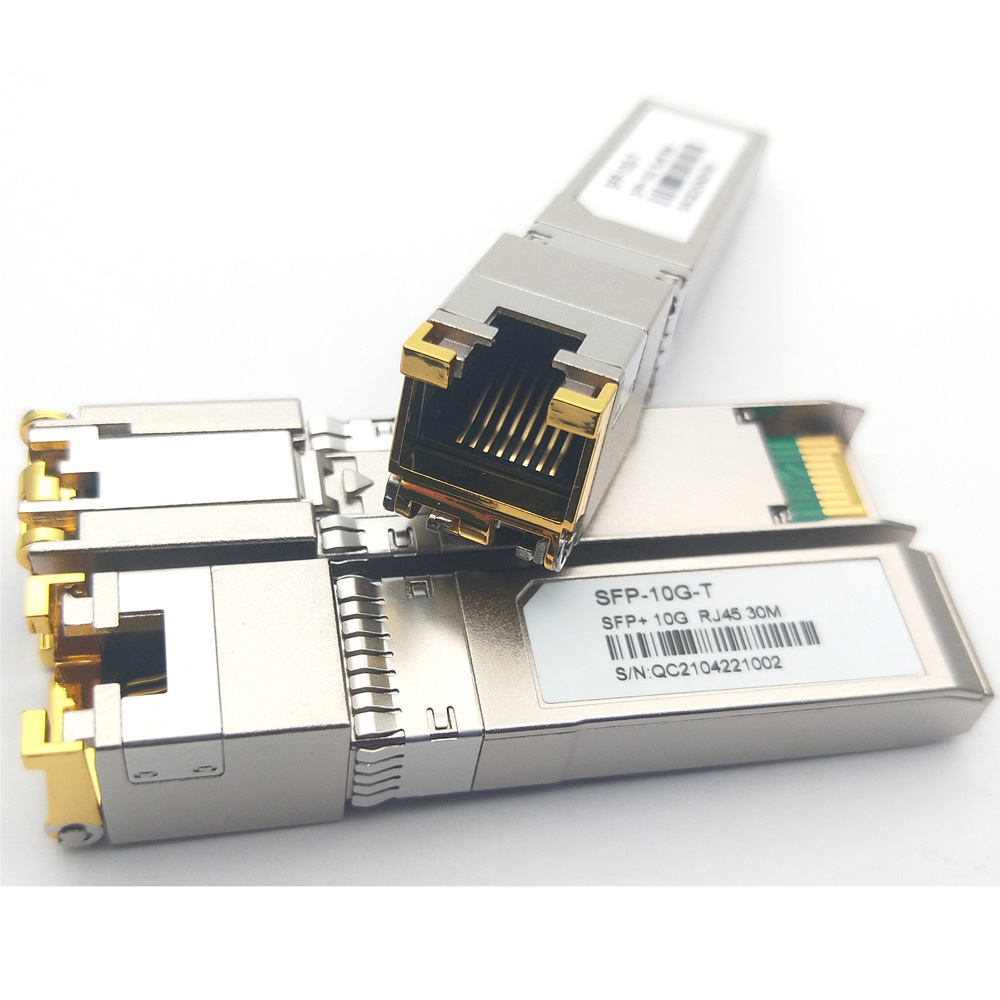

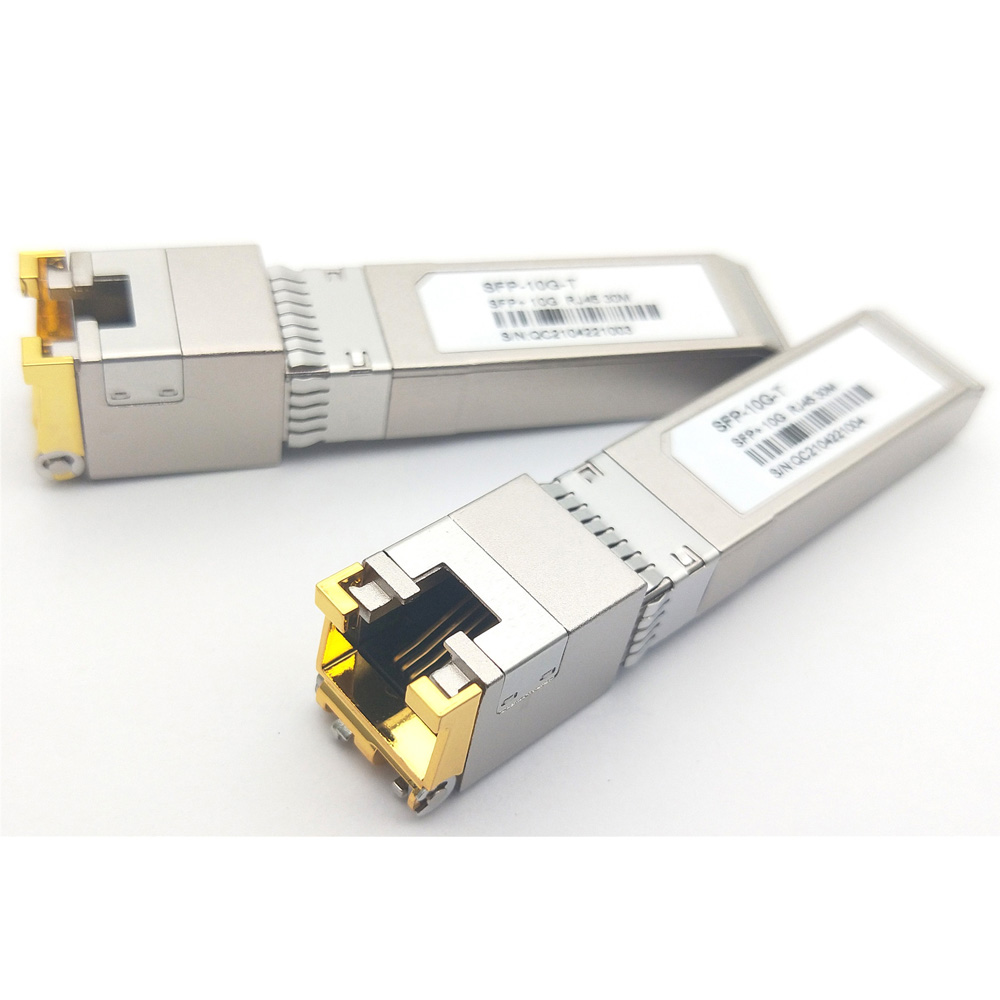

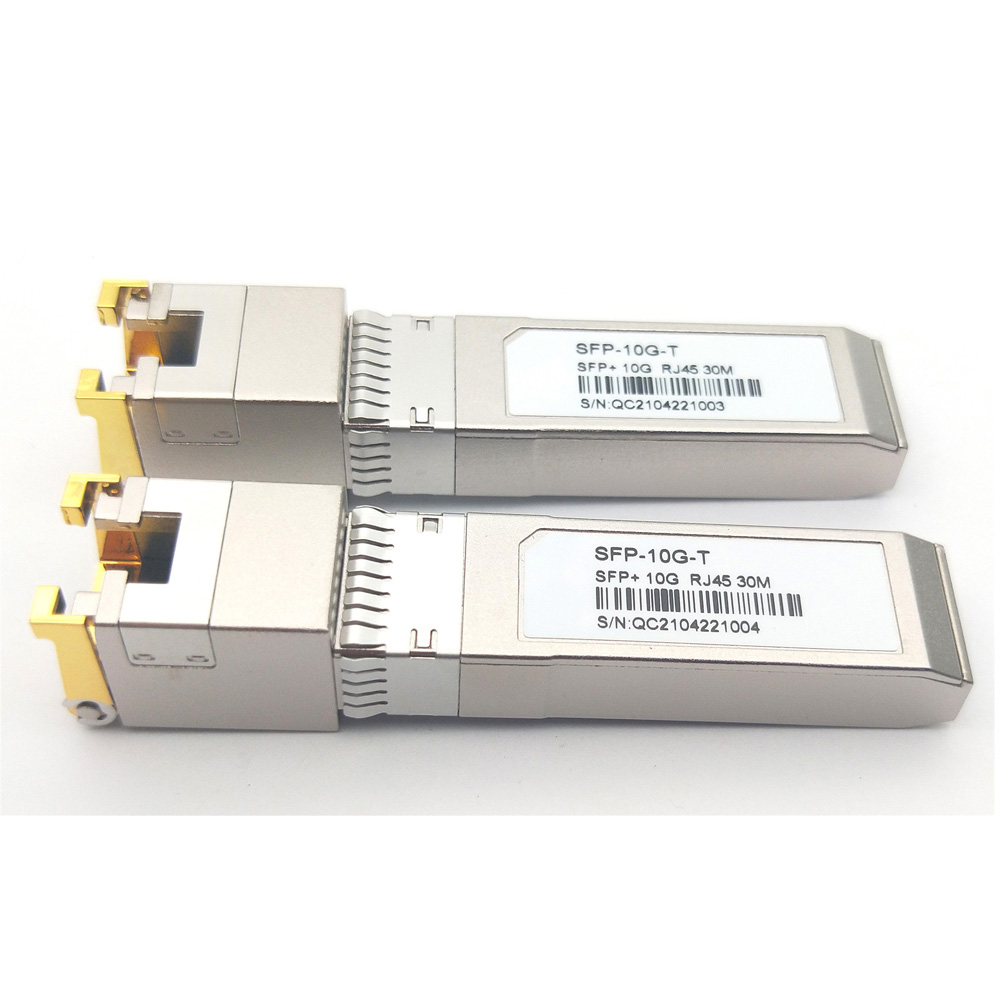

Product Pics
Product Features
产品特点

 10G电口模块特点



l市场大多数数据中心内设备间的链路距离在10 m到80 m之间,使用10GBASE-T SFP+电口光模块能弥补SFP+高速线缆传输距离的不足。

l10GBASE-T SFP+电口模块采用RJ45接口,和超六类或七类网线一起使用,而铜缆布线的成本要比光缆布线的低。

l在成本上,10GBASE-T SFP+电口模块可以直接用在现有的铜缆布线系统中实现10G传输,而使用SFP+光模块则需要用光缆进行布线,这会增加部署成本。如果想要在现有铜缆布线系统中使用SFP+光模块,则需要增加以太网交换机或光电转换器等设备



 PRODUCT FEATURES



l  Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T

l  Hot-pluggable SFP footprint

l  Compact RJ-45 connector assembly

l  RoHS compliant and lead-free

l Single +3.3V power supply

l 10 Gigabit Ethernet over Cat 6a cable

lAmbient Operating temperature: 0°C to +60°C



 PRODUCT DESCRIPTION



SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin,  PHY IC be reset.

  +3.3V Volt Electrical Power Interface



The SFP+-10GBASE-T has an input voltage range of 3.3 V +/- 5%. The 4V maximum voltage is not allowed for continuous operation.

+3.3 Volt Electrical Power

Interface

Parameter

Symbol

Min

Typ

Max

unit

Notes/Conditions

Supply Current

Is


700

900

mA

3.0W max power over

full range of voltage

and temperature.

See caution note below

Input Voltage

 Vcc

3.13

3.3

3.47

V

Referenced to GND

Maximum Voltage

Vmax



4

V


Surge Current

Isurge


TBD


mA

Hot plug above steady state

current.  See caution note

below



Caution: Power consumption and surge current are higher than the specified values in the SFP MSA

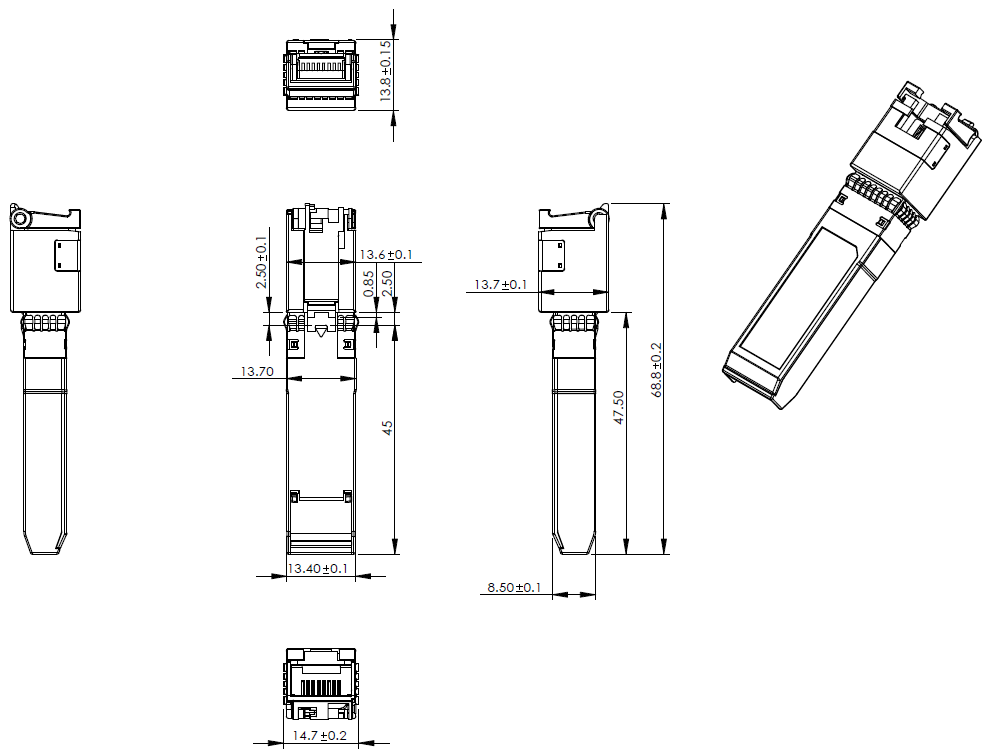

Outline drawing (mm)


 Low-Speed Signals



MOD_DEF(1)  (SCL)  and  MOD_DEF(2)  (SDA),  are  open  drain  CMOS  signals  (see section VII, "Serial Communication Protocol").   Both MOD_DEF(1) and MOD_DEF(2) must be pulled up to host_Vcc



Low-Speed Signals,  Electronic Characteristics

Parameter

Symbol

Min

Max

unit

Notes/Conditions

SFP Output LOW

VOL

0

0.5

V



4.7k to 10k pull-up to host_Vcc,

measured at host side of connector

SFP Output HIGH

VOH

host_Vcc -0.5

host_Vcc + 0.3

V



4.7k to 10k pull-up to host_Vcc,

measured at host side of connector

SFP Input LOW

VIL

0

0.8

V

4.7k to 10k pull-up to Vcc,

measured at SFP side of connector



SFP Input HIGH

VIH

2

Vcc + 0.3

V

4.7k to 10k pull-up to Vcc,

measured at SFP side of connector






  High-Speed Electrical Interface



All high-speed signals are AC-coupled internally.



High-Speed Electrical Interface,  Transmission Line-SFP

Parameter

Symbol

Min

Typ

Max

unit

Notes/Conditions

Line Frequency

fL


125


MHz

5-level encoding, per

IEEE 802.3

Tx Output Impedance

Zout,TX


100


Ohm

Differential, for all

frequencies between

1MHz and 125MHz

Rx Input Impedance

Zin,RX


100


Ohm

Differential, for all

frequencies between

1MHz and 125MHz





High-Speed Electrical Interface,  Host-SFP

Parameter

Symbol

Min

Typ

Max

unit

Notes/Conditions

Single ended data input

swing

Vinsing

250


1200

mV



Single ended

Single ended data output

swing

Voutsing

350


800

mV

Single ended

Rise/Fall Time

Tr,Tf


175


psec

20%-80%

Tx Input Impedance

Zin


50


Ohm

Single ended

Rx Output Impedance

Zout


50


Ohm

Single ended
